KRS—Intelligent Dry Sorter

²   Basic parameter of KRS--Intelligent Dry Sorter

        Ø    Material：                                        Coal

           Ø    Feed Size：                                 8--300mm

           Ø    Capacity：                                   20-200t/h

           Ø    Separation Efficiency：                 ～90

           Ø   Conveyor Width：                        0.6～2m

           Ø    Belt Speed：                               0-3.5m/s

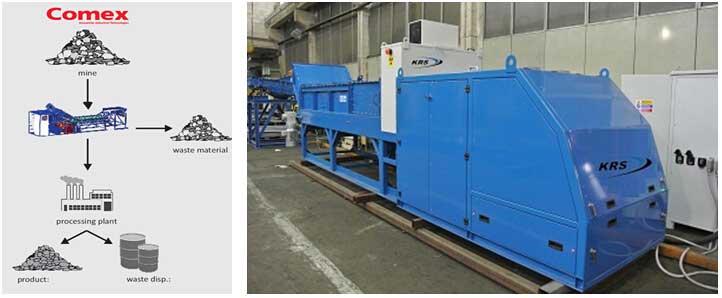

²   Illustration of KRS--Intelligent Dry Sorter

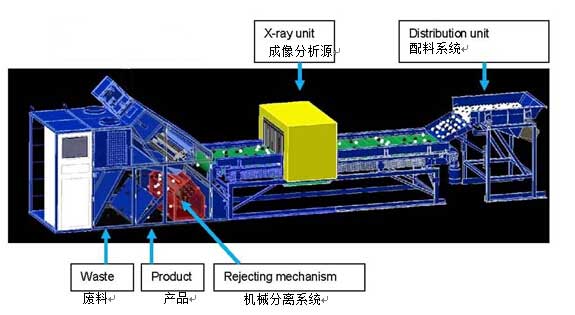

²   KRS--Intelligent Dry Sorter Consists of:

Ø   Batching system

Ø   Material transportation system

Ø   Imaging analysis source

Ø   Computer intelligent control system

Ø   Ejection module

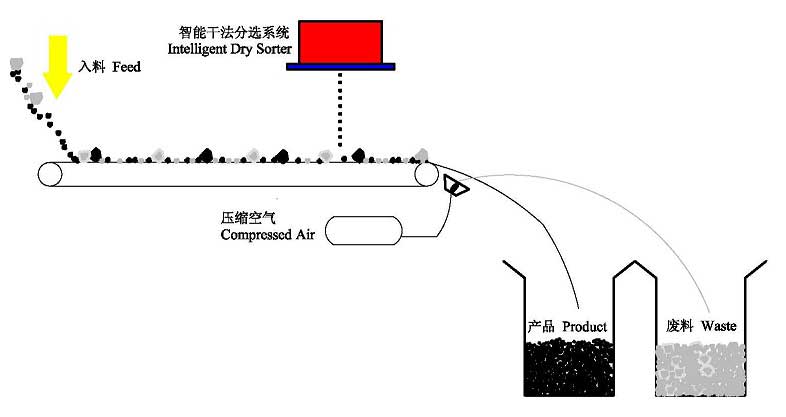

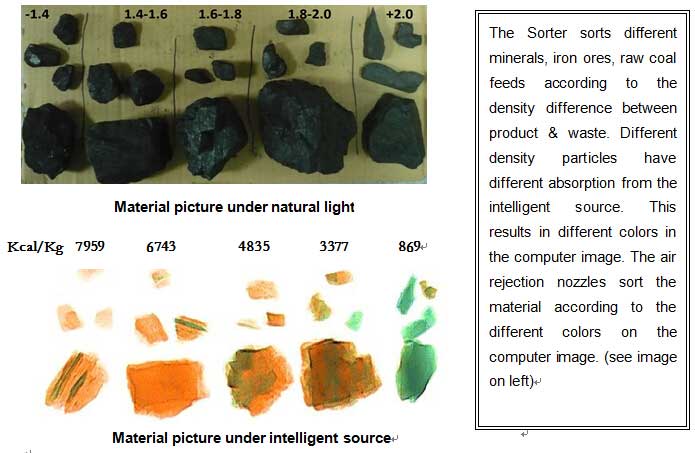

²   Principle of KRS Intelligent Dry Sorter

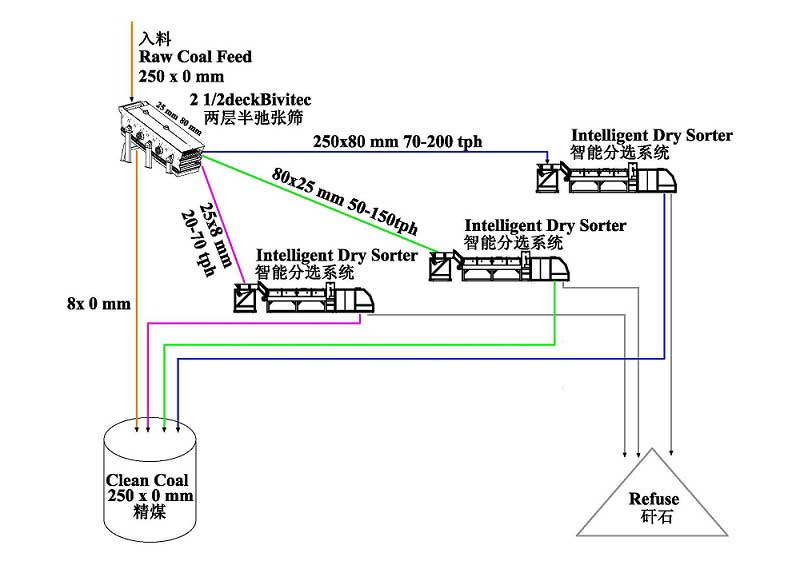

²   Typical Flow Sheet

    Separating Efficiency: 〉85%

²   KRS Equipment Features

Ø   Totally dry process- no water required

Ø   Low power consumption, high separating efficiency

Ø   Lower Capital cost

Ø   Low operating and maintenance cost

Ø   Easy operation, high stability

²   Scope of application

Ø   Coal and reject separation in dry or cold areas

Ø   Replace hand picking of raw coal

Ø   Replace ROM Jig

Ø   Pre-concentration of raw coal feed to CPP by removing refuse
